一、雷达液位计工作原理The working principle of radar level gauge
雷达液位计是一种先进的工业测量设备，其工作原理基于电磁波的反射特性。以下是其工作过程的详细描述：
The radar level gauge is an advanced industrial measurement device, and its working principle is based on the reflection characteristics of electromagnetic waves. The following is a detailed description of its working process:
信号发射Signal transmission
雷达液位计的天线向被测液体表面发射高频雷达波（电磁波）。这些雷达波以光速在空间中传播，频率范围通常在26GHz到78GHz之间，具体频率取决于雷达液位计的型号。例如，GRAEFF（格拉夫）GSR系列雷达液位计采用78GHz的毫米波波段，这种高频雷达波能够实现更精确的定位和更高的分辨率。
The antenna of the radar level gauge emits high-frequency radar waves (electromagnetic waves) towards the surface of the liquid being measured. These radar waves propagate in space at the speed of light, with frequencies typically ranging from 26GHz to 78GHz, depending on the model of the radar level gauge. For instance, the GRAEFF GSR series radar level gauge employs the 78GHz millimeter-wave band. This high-frequency radar wave enables more precise positioning and higher resolution.
信号反射Signal reflection
当雷达波遇到液体表面时，由于空气与液体的介电常数存在差异，雷达波会发生反射。部分能量返回天线，反射信号的强度取决于液体的介电常数和表面状态。对于GSR系列雷达液位计，其波束角小于3°，能够有效减少干扰，同时对小罐体和复杂工况下的测量表现出色。
When radar waves encounter the surface of a liquid, due to the difference in dielectric constants between air and liquid, the radar waves will be reflected. Part of the energy is returned to the antenna, and the intensity of the reflected signal depends on the dielectric constant and surface state of the liquid. For the GSR series radar level gauge, its beam Angle is less than 3°, which can effectively reduce interference. At the same time, it performs well in measuring small tanks and complex working conditions.
信号处理与输出Signal processing and output
天线接收反射波后，通过信号处理器分析时间差或频率差，从而计算出液位数据。这些数据可以通过多种方式输出，例如4-20mA电流信号、RS485数字信号或现场显示。GSR系列雷达液位计支持标准HART协议和MODBUS总线协议，能够与上位机或控制系统无缝对接。
After the antenna receives the reflected wave, the signal processor analyzes the time difference or frequency difference to calculate the liquid level data. These data can be output in various ways, such as 4-20mA current signals, RS485 digital signals or on-site displays. The GSR series radar level gauge supports the standard HART protocol and MODBUS bus protocol, and can be seamlessly integrated with the upper computer or control system.
二、雷达液位计常见故障及处理方法Common Faults and Solutions of Radar Level gauges
1. 测量值不准确
原因分析
参数设置错误，如量程、介质类型或盲区设置不当。
信号衰减，可能由于介质表面波动或反射信号较弱。
解决方案
核对雷达液位计的参数设置，确保所有参数与实际工况相符。
启用近场抑制功能，减少近距离干扰。
调整雷达液位计的安装位置或角度，优化信号反射路径。
1.The measured value is inaccurate
Cause analysis
Parameter Settings are incorrect, such as improper setting of range, medium type or blind zone.
Signal attenuation may be due to surface fluctuations of the medium or weak reflected signals.
Solution
Check the parameter Settings of the radar level gauge to ensure that all parameters are consistent with the actual working conditions.
Enable the near-field suppression function to reduce close-range interference.
Adjust the installation position or Angle of the radar level gauge and optimize the signal reflection path.
2. 空罐时液位显示异常
原因分析
天线或天线附近积垢，影响信号的正常发射和接收。
解决方案
清洁天线，去除积垢。如果积垢难以清除，可能需要更换天线。
定期检查雷达液位计的天线状态，避免类似问题再次发生。
2.The liquid level display is abnormal when the tank is empty
Cause analysis
Dirt accumulation on or near the antenna affects the normal transmission and reception of signals.
Solution
Clean the antenna and remove the dirt. If the dirt is difficult to remove, the antenna may need to be replaced.
Regularly check the antenna condition of the radar level gauge to prevent similar problems from happening again.
3. 液位稳定但显示值波动原因分析
信号受到介质表面波动的影响，导致测量值不稳定。
多重反射信号干扰，可能由容器内的障碍物引起。
解决方案
启用近场抑制功能，减少近距离干扰。
增大输出阻尼，平滑测量值，避免因短暂波动导致的误判。
调整雷达液位计的安装位置，避免直接对准障碍物。
3.The liquid level is stable but the displayed value fluctuates
Cause analysis
The signal is affected by the surface fluctuations of the medium, resulting in unstable measurement values.
Multiple reflection signal interference may be caused by obstacles inside the container.
Solution
Enable the near-field suppression function to reduce close-range interference.
Increase the output damping, smooth the measurement values, and avoid misjudgment caused by short-term fluctuations.
Adjust the installation position of the radar level gauge to avoid direct alignment with obstacles.
4. 液位显示异常偏低
原因分析
多重反射信号干扰，导致雷达液位计误判液位高度。
安装位置不当，雷达波束未能正确反射。
解决方案
优化雷达液位计的反射信号处理算法，减少误判。
重新选择安装位置，确保雷达波束能够直接反射。
4.The liquid level display is abnormally low
Cause analysis
The interference of multiple reflected signals causes the radar level gauge to misjudge the liquid level height.
The installation position was improper, and the radar beam failed to reflect correctly.
Solution
Optimize the reflection signal processing algorithm of the radar level gauge to reduce misjudgment.
Reselect the installation position to ensure that the radar beam can be reflected directly.
5. 液位显示异常偏高
原因分析
仪表硬件故障，如天线或发射管损坏。
工艺条件变化，如介质温度升高或蒸汽干扰。
解决方案
检查雷达液位计的硬件状态，必要时更换损坏部件。
调整雷达液位计的参数设置，以适应新的工艺条件。
5.The liquid level display is abnormally high
Cause analysis
Instrument hardware failure, such as damage to the antenna or transmitting tube.
Changes in process conditions, such as an increase in medium temperature or steam interference.
Solution
Check the hardware condition of the radar level gauge and replace the damaged parts if necessary.
Adjust the parameter Settings of the radar level gauge to adapt to the new process conditions.
6. 液位无显示
原因分析
参数设置错误，导致雷达液位计无法正常工作。
雷达发射管损坏，无法发射信号。
介质对雷达波有吸收作用，导致信号无法反射。
解决方案
核对雷达液位计的参数设置，确保所有参数正确无误。
检查雷达发射管的状态，必要时进行更换。
如果介质对雷达波有吸收作用，考虑更换其他类型的液位计。
6.The liquid level is not displayed
Cause analysis
The parameter setting was incorrect, causing the radar level gauge to fail to work properly.
The radar transmitting tube is damaged and unable to transmit signals.
The medium has an absorbing effect on radar waves, resulting in the inability of the signal to be reflected.
Solution
Check the parameter Settings of the radar level gauge to ensure that all parameters are correct.
Check the status of the radar transmitting tube and replace it if necessary.
If the medium has an absorbing effect on radar waves, consider replacing it with another type of liquid level gauge.
三、雷达液位计的优势The advantages of radar level gauges
雷达液位计作为一种先进的工业测量设备，具有以下显著优势：
高精度测量：能够实现毫米级的测量精度，适用于高精度测量需求。
适应复杂工况：高频电磁波能够穿透粉尘、蒸汽等干扰，适应恶劣环境。
非接触式测量：无机械磨损，无污染，适合各种腐蚀性介质。
多种通信协议：支持多种通信协议，便于与自动化控制系统集成。
通过深入了解雷达液位计的工作原理和常见故障处理方法，用户可以更好地使用和维护设备，确保测量的准确性和可靠性。
As an advanced industrial measurement device, the radar level gauge has the following significant advantages:
High-precision measurement: It can achieve millimeter-level measurement accuracy and is suitable for high-precision measurement requirements.
Adapt to complex working conditions: High-frequency electromagnetic waves can penetrate interferences such as dust and steam, and adapt to harsh environments.
Non-contact measurement: No mechanical wear, no pollution, suitable for various corrosive media.
Multiple communication protocols: Supports multiple communication protocols, facilitating integration with automatic control systems.
By thoroughly understanding the working principle of radar level gauges and common fault handling methods, users can better utilize and maintain the equipment, ensuring the accuracy and reliability of measurements.
四、雷达液位计应用场景Application Scenarios of Radar Level Gauges
雷达液位计广泛应用于多个领域，其非接触式测量方式和高精度特性使其成为各种工业环境中的理想选择。以下是雷达液位计的主要应用领域：
Radar level gauges are widely used in many fields. Their non-contact measurement method and high-precision characteristics make them the ideal choice for various industrial environments. The following are the main application fields of radar level gauges:

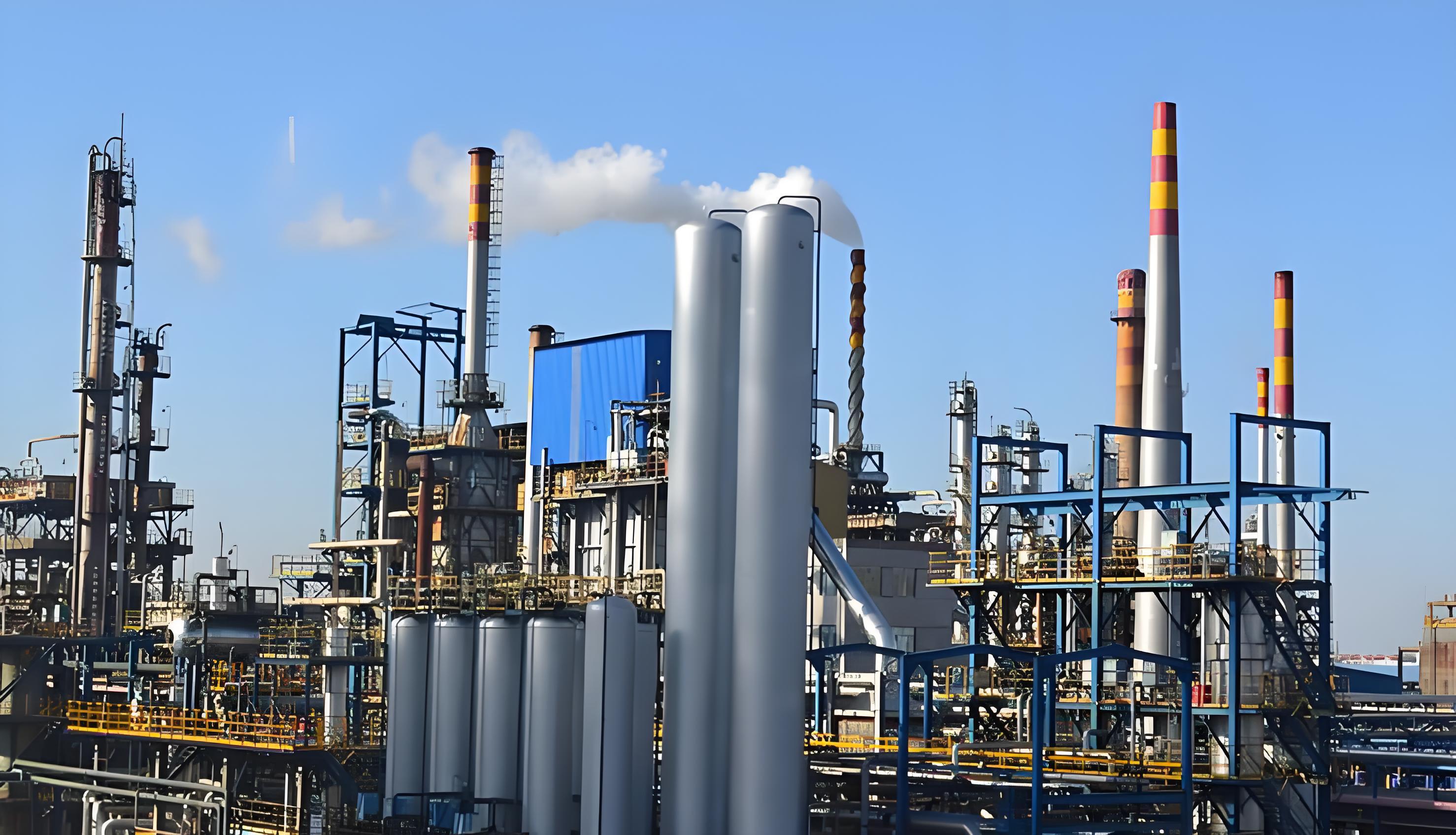

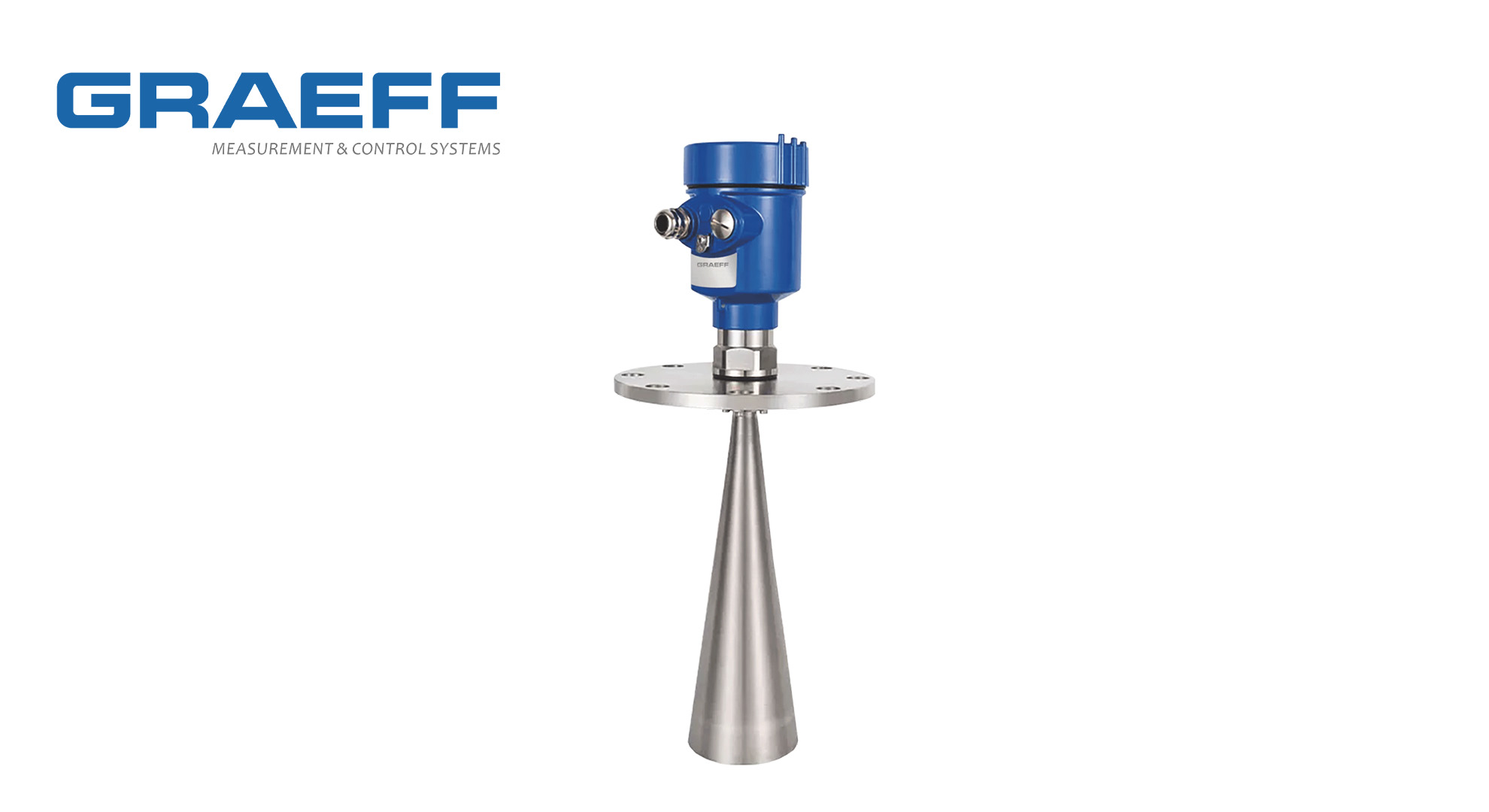

石油化工
在石油化工领域，雷达液位计用于测量原油、成品油、化工原料等的液位。其高精度和抗干扰能力使其能够在复杂的工况下稳定工作，确保生产过程的安全和效率。
Petroleum and Chemical Industry
In the petroleum and chemical industry, radar level gauges are used to measure the liquid level of crude oil, refined oil, chemical raw materials, etc. Its high precision and anti-interference ability enable it to work stably in complex working conditions, ensuring the safety and efficiency of the production process.

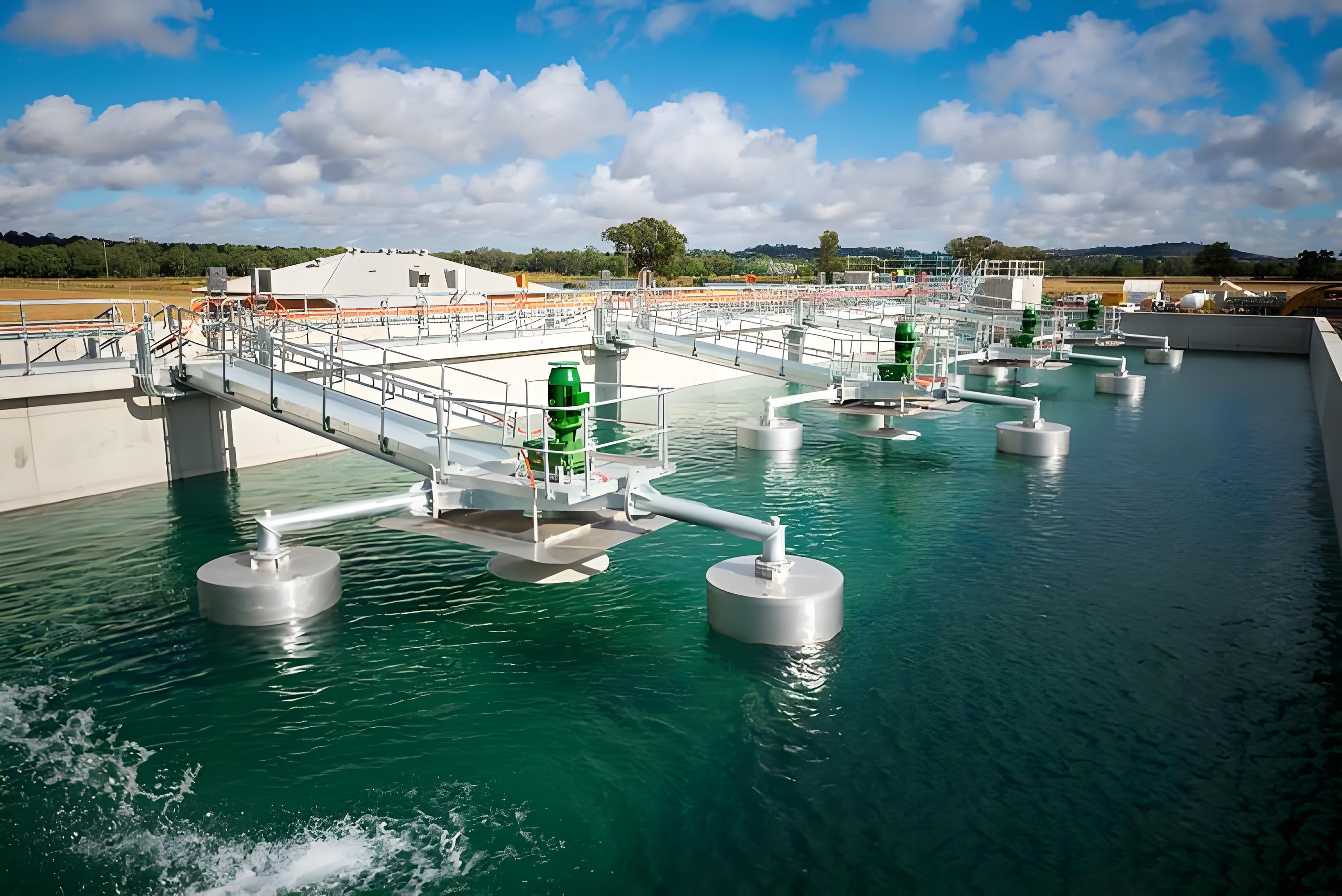

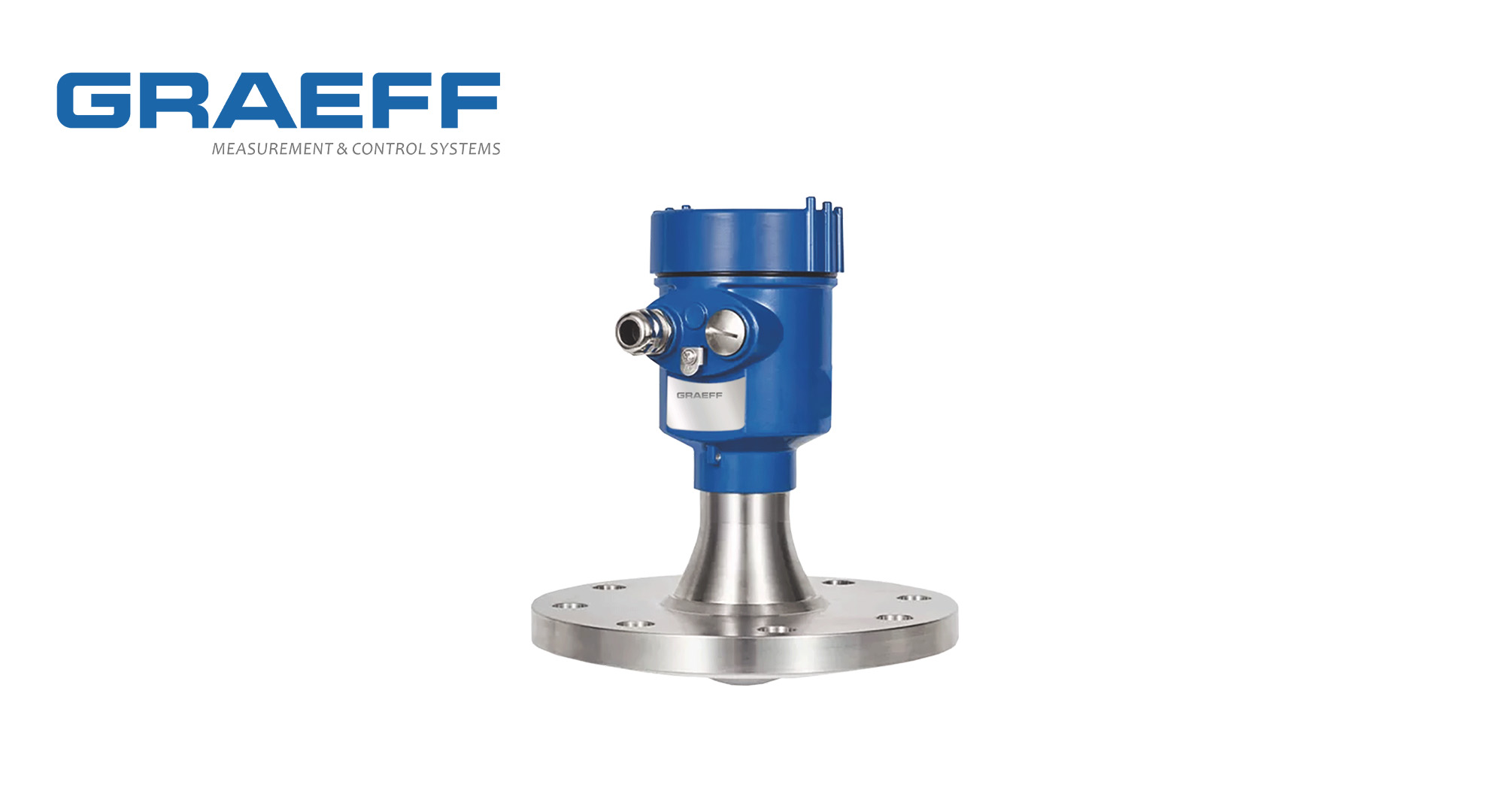

水处理
在水处理领域，雷达液位计用于测量清水、污水、污泥等的液位。其抗干扰能力和适应复杂工况的能力使其成为水处理过程中的理想选择。
Water Treatment
In the water treatment field, radar level gauges are used to measure the liquid level of clear water, sewage, sludge, etc. Its anti-interference ability and ability to adapt to complex working conditions make it the ideal choice for the water treatment process.

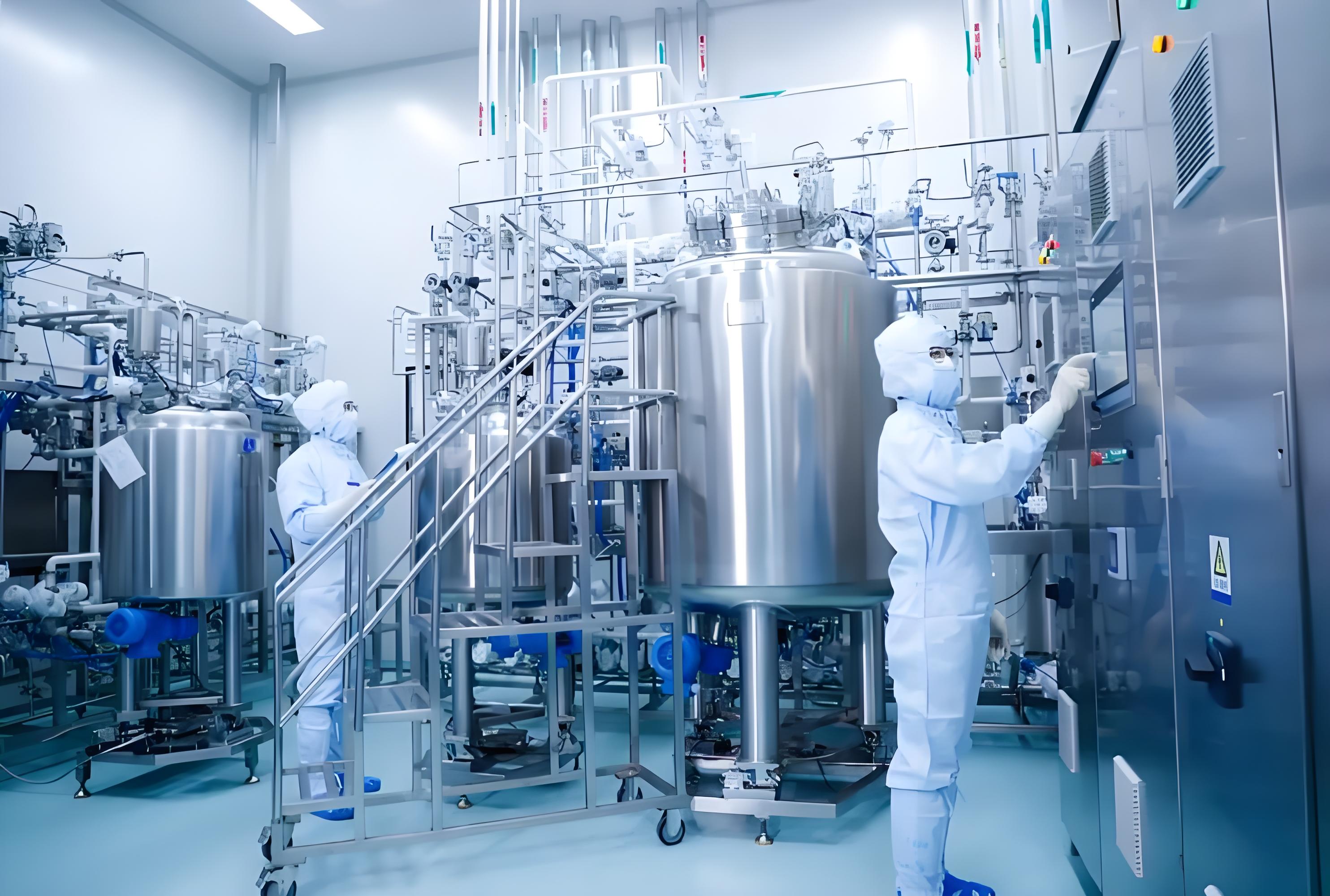

制药行业
在制药行业，雷达液位计用于测量药液、溶剂等的液位。其高精度和可靠性确保了药品生产的质量和安全。
Pharmaceutical Industry
In the pharmaceutical industry, radar level gauges are used to measure the liquid level of medicinal liquids, solvents, etc. Its high precision and reliability ensure the quality and safety of pharmaceutical production.
